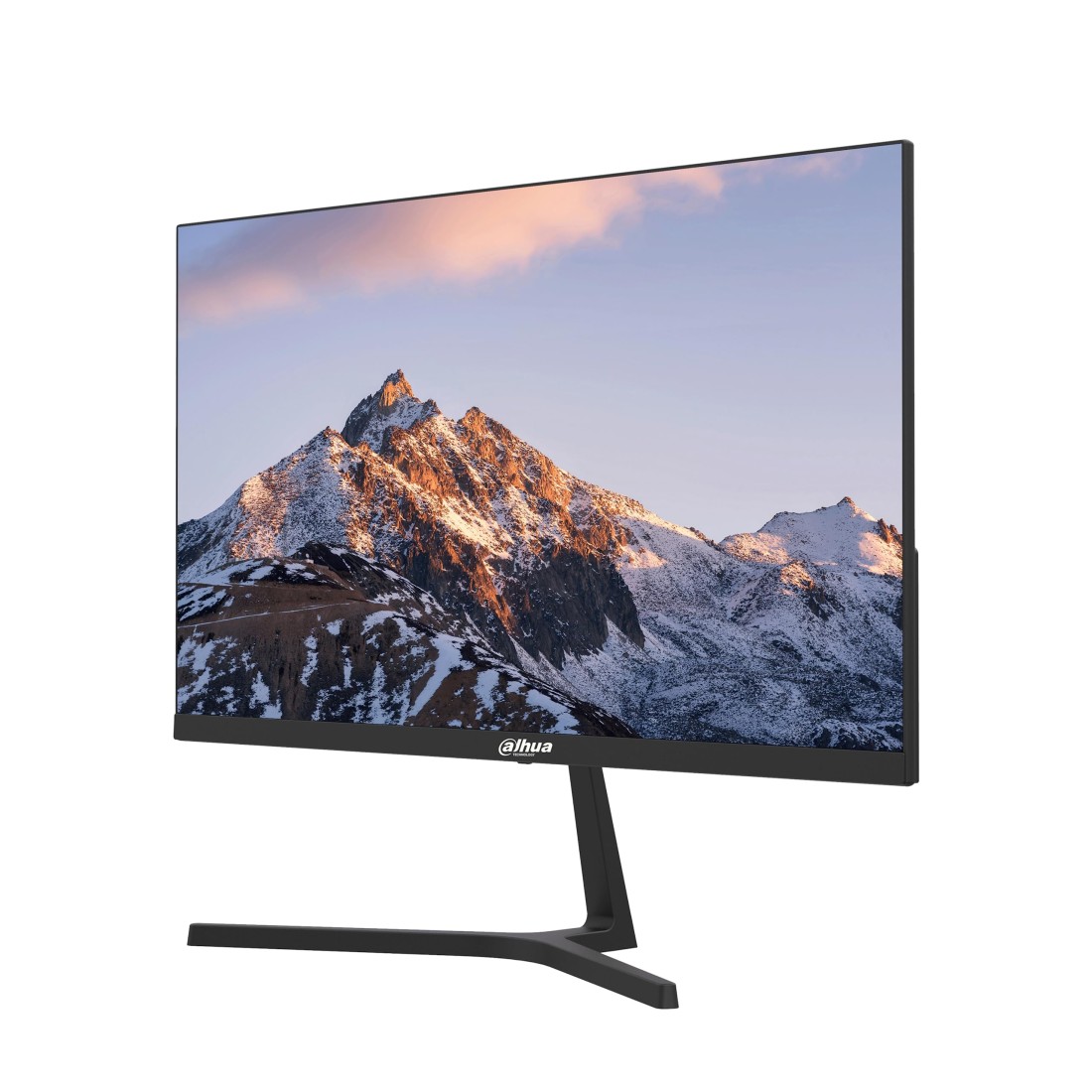

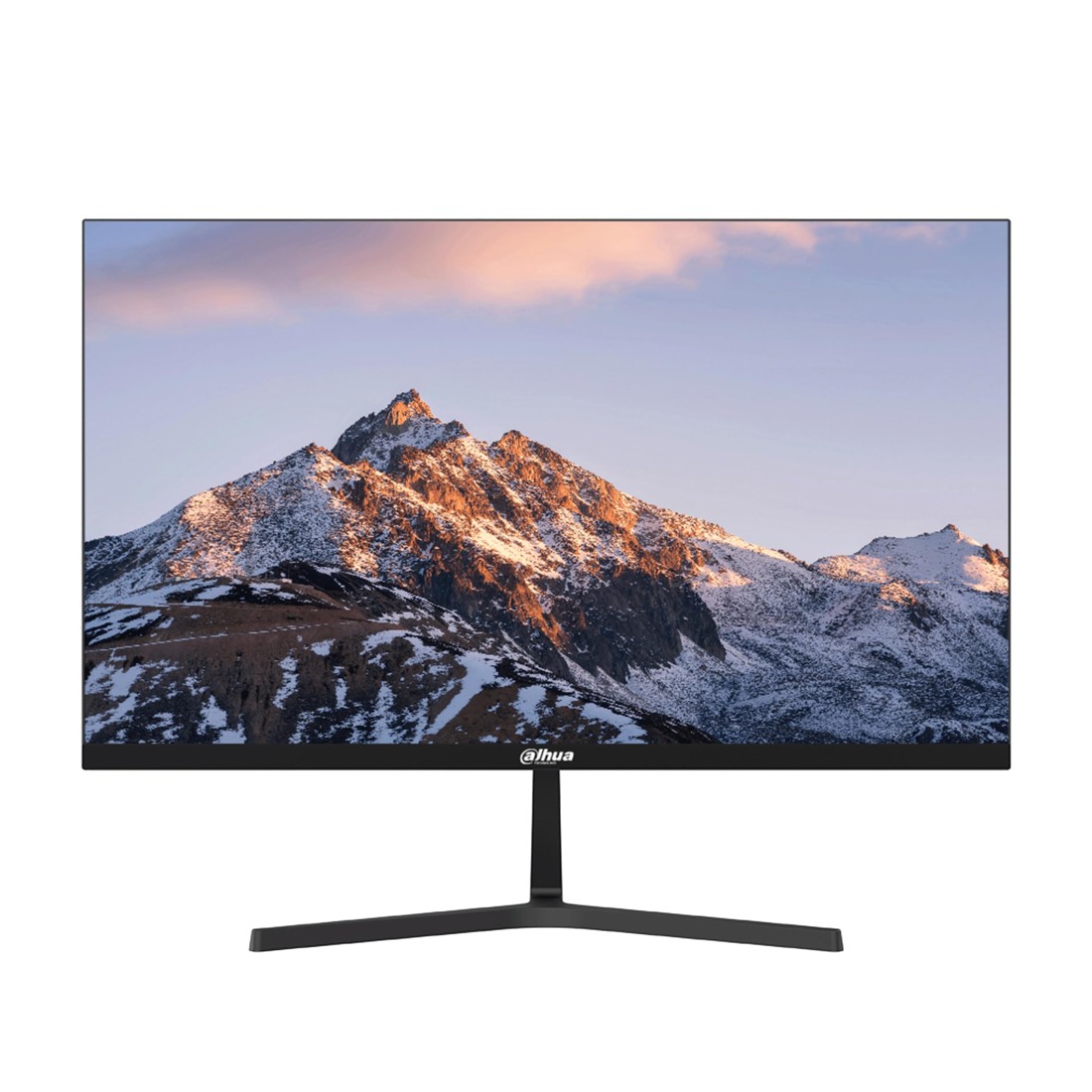

Dahua Monitor DHI-LM22-B200, 22inch/ 75Hz

Product Specifications

Model

Model   DHI-LM22-B200

Display

Screen Size         21.45″

Aspect Ratio      16:9

Resolution         1920×1080 (FHD)

Backlight             LED

Brightness/Luminance   250 cd/㎡

Contrast             3000:1

Display Color     16.7M(8bit)

Viewing Angle(H/V)        178°(H)/178°(V)

Response time(typ.)       5ms

Refresh Rate      Max.75Hz , Typ.60Hz

Signals

Input     VGA×1, HDMI×1

Output Audio Out x1

General

Power Supply    DC 12V

Consumption (Standard)             24W

Consumption (Standby) ≤0.5W

Net Weight        2.5kg (5.5lb)

Gross Weight     3.5kg (7.7lb)

Bezel Width       3.1mm(R/L) 12.5mm(B)

Wall Mount       75×75mm (3.0″×3.0″)

Dimension without standard (W×H×D)   492.3×280.9×41.8mm (19.4“x11.1”x1.6”）

Package(W×H×D)            572x390x106mm (22.5“x15.4”x4.2“）

Work Environment         Temperature     0℃~40℃ (32°F~104°F)

Humidity            10%~85%

Accessory

Standard            HDMI cable, power cable, base

Optional             Gas spring desk bracket

Certifications

Certifications     CE/FCC
